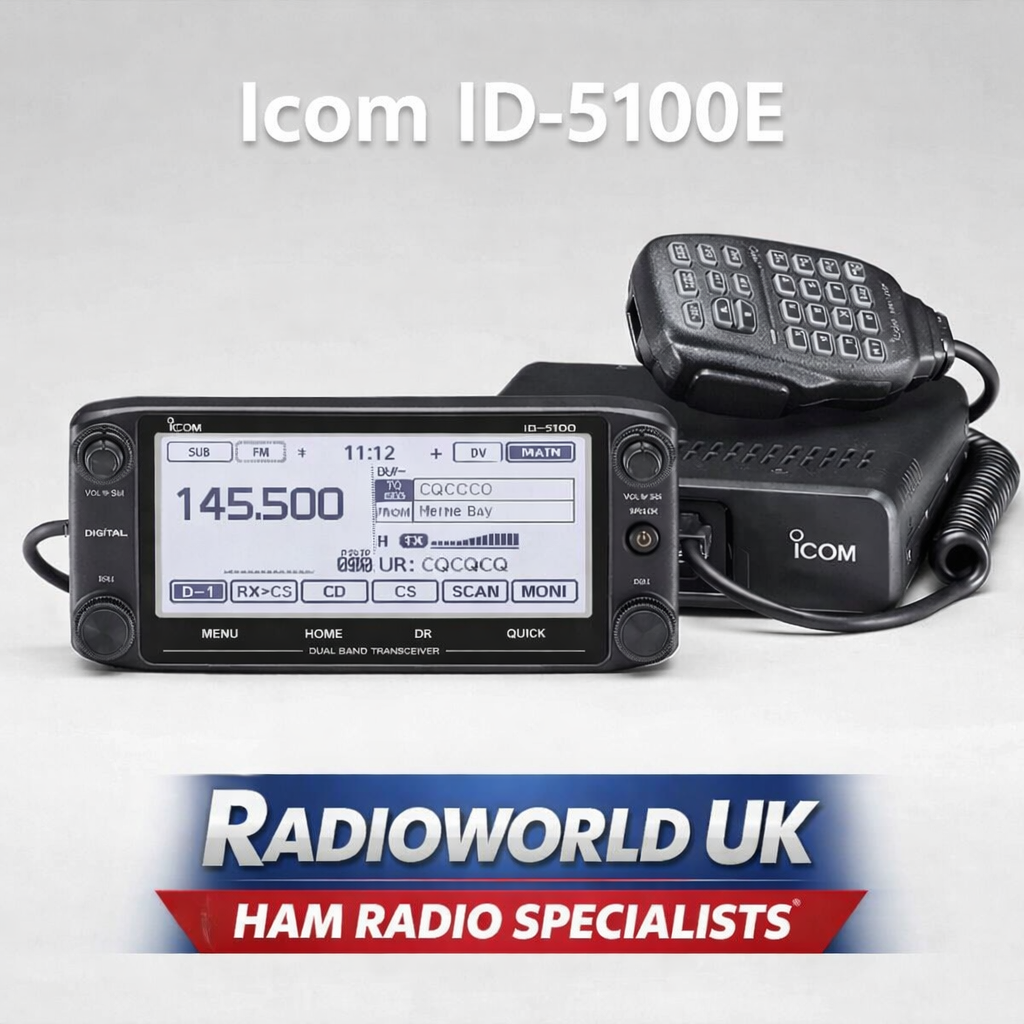

Icom’s new ID-5100E VHF/UHF dual-band D-STAR digital mobile transceiver enhances core features found in the celebrated IC-2820H mobile and incorporates the user-friendly technology found in the IC-7100. The radio features a large responsive touch screen and also integrated GPS, optional Bluetooth connectivity, and support for Android devices.

The standard version comes complete with a multi-functional microphone and hanger, DC power and controller cables, and CS-5100 cloning software.

Intuitive Touch Screen Operation,

The intuitive touchscreen interface provides quick and smooth operation for setting and editing various functions and memories. The 5.5-inch display (320 × 128 pixels) shows a large easy-to-see software keypad (Qwerty keyboard) and allows you to input alphanumeric characters quickly.

VHF/UHF, VHF/VHF, UHF/UHF Dual Receive,

The ID-5100E receives 118–174MHz and 375–550MHz* with dual receiver capability that allows you to receive two bands simultaneously (including within a single band)*. Almost all VHF & UHF communications are available to you!

DV Dual watch,

The ID-5100E has simultaneous receive for FM/FM and FM/DV modes and the capability of monitoring two DV signals. The main band audio has priority if two DV signals come in at the same time.

Integrated GPS receiver

The ID-5100E has an integrated GPS which allows you to transmit and receive position data from the built-in GPS receiver. Position, course, speed, and altitude are shown on the display. The GPS position information can be used for exchanging position reports, tracing the GPS log, and searching for nearby repeater sites. The GPS antenna is located in the remote head, no external GPS antenna is required.

DV/FM Repeater List Function,

The DV/FM repeater list function assists you in accessing nearby repeaters, even when you are visiting an area for the first time. The function searches for nearby repeaters using the repeater memories with the GPS position information. To use the repeater list function, the position data of the repeater is required in the repeater list.

Dplus Reflector Linking,

Dplus Reflector link commands are added to the DR function to allow easy reflector operation. Use Reflector, link/unlink to Reflector, echo test, and repeater information commands are selectable.

RS-MS1A Android™ Application (Free Download Application From Google Play™)*

Connect to the ID-5100E for remote control of DR functions, link with a map application, and send/receive messages and images over the DV mode. You can download the free Android RS-MS1A application from Google Play Store.

*Optional UT-133 Bluetooth unit must be installed in the ID-5100E. Some functions may be subject to Android phones and devices used.

Other Features,

• Menu-driven user interface

• DTMF via microphone or ID-5100 display

• SD Card slot for voice and data storage

• Enhanced D-PRS functions with object, position, item, and weather formats

• Convenient memory contents management using CSV data format

• Speech function announces operating frequency, mode, and received callsign (DV mode)

• Independent main dial, volume, and SQL knobs for A/B bands

• AM airband dual watch

• CS-5100, cloning software supplied

• 50W output power on both VHF and UHF bands

Supplied Standard Accessories,

• Hand microphone, HM-207,

• Controller cable, OPC-837 (3.5 m; 11.4 ft),

• Microphone hanger,

• CD (CS-5100 and instruction handbook PDF),

• Spare fuse,

Intuitive touchscreen operation, Menu-driven user interface,

VHF/UHF, VHF/VHF, UHF/UHF Dual receive,

DV Dual watch,

Integrated GPS receiver,

DV/FM Repeater list function

Dplus reflector linking

Optional Bluetooth Connectivity

RS-MS1A Android application (Free download application from Google Play)

DTMF via microphone or ID-5100 display

Enhanced D-PRS functions with object, position, item, and weather formats

Convenient memory contents management using CSV data format

SD Card slot for voice and data storage

The speech function announces operating frequency, mode, and received callsign (DV mode)

Independent main dial, volume, and SQL knobs for A/B bands

AM airband dual watch

50W output power on both VHF and UHF bands

CS-5100, cloning software supplied.
