Mosley HF Beam Antenna – Trapmaster Series
Mosley ANT-TA-32-M Trap Master 2-Element Multi-Band Beam Antenna – 10/15/20m HF Yagi | Radioworld UK
£0.00
(£0.00 exc. VAT)
£849.95
(£708.29 exc. VAT)
+ £20.00
Please note that there is an extra charge for deliveries exceeding 1.0 meter.
Fast uk delivery
Worldwide delivery
Out of Stock
Sorry!
This product is currently out of stock, there is no expected lead time until it is back in stock, but you can still order anyway.
Finance Available
Radioworld now offer finance through our partners Close Brothers.
Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.
| Item Cost | Finance Option | Deposit | Monthly Payments | Total Cost |
|---|---|---|---|---|
£849.95
|
12 Months 14.9% APR
|
£84.99
|
£73.24
|
£963.93
|
£849.95
|
18 Months 14.9% APR
|
£84.99
|
£48.83
|
£963.93
|
£849.95
|
24 Months 14.9% APR
|
£84.99
|
£36.62
|
£963.93
|
£849.95
|
36 Months 14.9% APR
|
£84.99
|
£24.41
|
£963.93
|
£849.95
|
48 Months 14.9% APR
|
£84.99
|
£18.31
|
£963.93
|
£849.95
|
12 Months 19.5% APR
|
£84.99
|
£76.18
|
£999.11
|
£849.95
|
18 Months 19.5% APR
|
£84.99
|
£50.78
|
£999.11
|
£849.95
|
24 Months 19.5% APR
|
£84.99
|
£38.09
|
£999.11
|
£849.95
|
36 Months 19.5% APR
|
£84.99
|
£25.39
|
£999.11
|
£849.95
|
48 Months 19.5% APR
|
£84.99
|
£19.04
|
£999.11
|
Click here to recommend this product to a friend
Recommend a friend
Mosley ANT-TA-32-M Trap Master 2-Element Multi-Band Beam Antenna – 10/15/20m HF Yagi | Radioworld UK

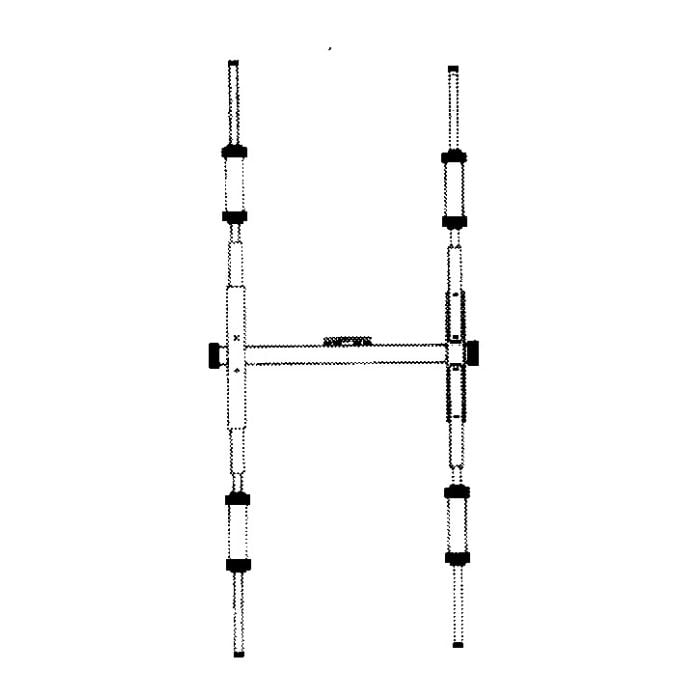

The Mosley ANT-TA-32-M Trap Master is a compact and efficient 2-element tri-band Yagi beam antenna, covering the 10, 15, and 20-meter HF amateur bands. Designed for maximum gain in a small footprint, the TA-32-M delivers the same legendary Mosley performance, reliability, and craftsmanship that operators have trusted for decades.
Built from aircraft-grade aluminium and featuring Mosley’s renowned Trap Master™ technology, this antenna provides broad bandwidth, high forward gain, and excellent front-to-back ratio — all while maintaining lightweight durability and ease of installation.
Ideal for operators with limited space or tower capacity, the TA-32-M offers full-size performance on 20 meters with low SWR across all bands. Perfect for home stations, DXing, and contest use where consistent results and proven quality matter most.
Key Features
Tri-band coverage: 10, 15, and 20 meters
2-element beam design for gain and directivity
Trap Master™ technology for broad bandwidth and efficiency
Full-size performance with compact boom length
High front-to-back ratio and excellent rejection of off-axis signals
Heavy-duty aircraft-grade aluminium construction
Lightweight, corrosion-resistant components for long-term reliability
Easy to assemble and tune
Made in the USA – built to Mosley’s legendary standards
Technical Specifications
| Specification | Details |
|---|---|
| Frequency Coverage | 14 / 21 / 28 MHz (20m, 15m, 10m) |
| Gain (average) | 6.2 dBi |
| Front-to-Back Ratio | 22 dB |
| Power Handling | 2 kW PEP |
| SWR | 1.5:1 or less (tuned bands) |
| Boom Length | 6.7 ft (2.04 m) |
| Longest Element | 19.8 ft (6.04 m) |
| Turning Radius | 10.2 ft (3.11 m) |
| Weight | Approx. 19 lbs (8.6 kg) |
| Wind Survival | 90 mph (145 km/h) |
| Feedpoint Impedance | 50 Ω |
| Connector Type | SO-239 (UHF female) |
All orders placed on this website will not be subject to VAT for customers residing in the European Union or the rest of the world. However, it is important to mention that VAT will still be applicable based on the rates set by your country upon delivery.
Our Price Match Promise means that if you find any of our Equipment at a lower advertised price elsewhere, we will match the price for you, subject to the below.
- The product is identical to ours in brand, colour, size and model number.
- The price must be the advertised price clearly on the competitor's online site.
- The item must be in stock and available for immediate purchase (rather than available to order), with the authorised stockist able to complete delivery within 2-3 days.
Please fill out the form below. The details will be used to help us with your price promise request.
Others who viewed this item WERE ALSO INTERESTED IN...
Mosley Mini-32AW HF 3 element mini beam antenna is designed to operate on the high-frequency (HF) bands and includes WARC bands.
The Mosley antenna is designed to cover the three most popular HF bands and the two WARC bands. It features three elements: two on 10m, 15m, and 20m, ...
£799.96£899.95
£999.95
£1,099.96
Back Order
Sorry!
This product is currently out of stock, there is no expected lead time until it is back in stock, but you can still order anyway.
Mosley Mini 33 AW Compact is a 5-band, 4 element compact beam antenna designed to operate on the 28, 24, 21, 18, and 14 MHz bands.
The Mosley Mini 33 AW compact five-element four-band beam, part of the Trap Master series, is known for its rugged construction tailored for amateur r...
£999.95£1,099.96
£799.96
£899.95
Back Order
Sorry!
This product is currently out of stock, there is no expected lead time until it is back in stock, but you can still order anyway.
Mosley Mini-33A is a 3-element ultra-lightweight antenna designed for 10, 15, and 20-meter bands.
The Mosley MINI-33-A operates at frequencies of 28, 21, and 14 MHz with power ratings varying for different modes: 500 watts CW, 1000 watts SSB, and 2...
£799.96£899.95
£1,495.96
ADD TO BASKET
Sorry!
This product is currently out of stock, there is no expected lead time until it is back in stock, but you can still order anyway.
Mosley ta-34xl 3 band beam, 4 elements operate primarily on 10, 15, and 20m.
The Mosley TA-34XL is a 4-element Yagi antenna with a 20-foot boom length. It boasts excellent gain and front-to-back ratio when operating on the 10, ...
£1,495.96
£1,795.96
Back Order
Sorry!
This product is currently out of stock, there is no expected lead time until it is back in stock, but you can still order anyway.
Mosley TA-53M is a 5-band high power beam antenna with a 4-element beam 28, 24, 21, 18, 14 MHZ.
The Mosley TA-53M is a 5-band high-power beam antenna with a 4-element beam covering frequencies of 28, 24, 21, 18, and 14 MHZ. Explicitly designed fo...
£1,795.96
£349.96
£399.95
ADD TO BASKET
Sorry!
This product is currently out of stock, there is no expected lead time until it is back in stock, but you can still order anyway.
Mosley SR-WARC kit includes a 12 and 17 meter rotatable dipole kit designed for Mosley models.
The MOSLEY SR-WARC Kit now includes a 12- and 17-meter Rotatable Dipole Kit for Mosley Models. This addition enhances the functionality of the larger ...
£349.96£399.95
£435.95
£499.96
Back Order
Sorry!
This product is currently out of stock, there is no expected lead time until it is back in stock, but you can still order anyway.
Mosley TA-31 JR-N is a triband rotary dipole antenna designed to operate on the 28, 21, and 14 MHz bands.
Mosley's Junior antenna is a compact and lightweight option that stands out in the market. Known for its innovative design and unmatched performance, ...
£435.95£499.96
£849.95
£899.95
ADD TO BASKET
Sorry!
This product is currently out of stock, there is no expected lead time until it is back in stock, but you can still order anyway.
Rv-6c Mosley 2kW 6-band HF vertical antenna covers the frequencies of 10, 12, 15, 17, 20, and 40 meters.
The 6-Band HF vertical antenna is a versatile option for enthusiasts, especially those with limited outdoor space. With a modest height of 20 feet, th...
£849.95£899.95
£1,289.95
£1,399.96
Back Order
Sorry!
This product is currently out of stock, there is no expected lead time until it is back in stock, but you can still order anyway.
Mosley MP-33-NW is a high power 4 element beam antenna designed for 10, 12, 15, 17, and 20 meters.
The Mosley MP‑33‑NW is a lightweight, portable 4‑element HF beam designed for operators who want strong performance across multiple bands without the ...
£1,289.95£1,399.96
£304.96
ADD TO BASKET

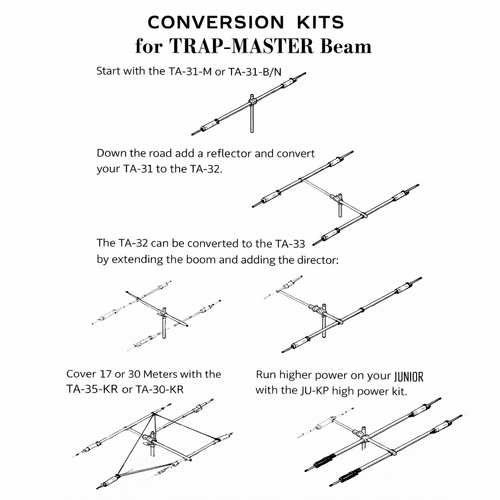

Mosley JR‑WARC Kit – WARC Conversion for TA‑32‑JR & TA‑33‑JR
