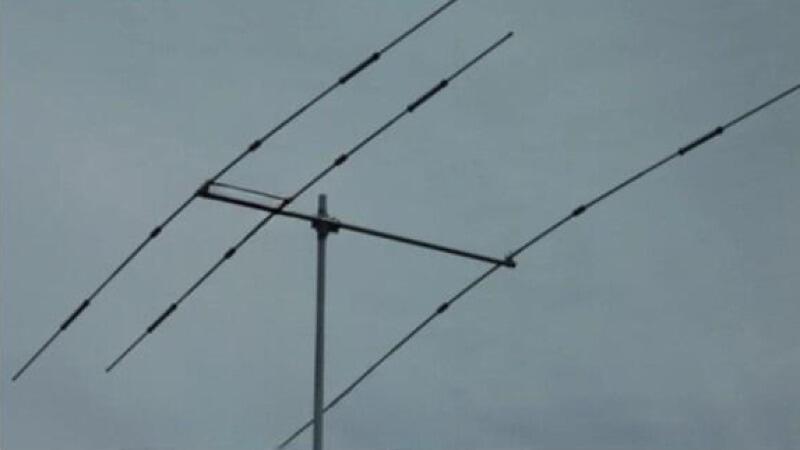

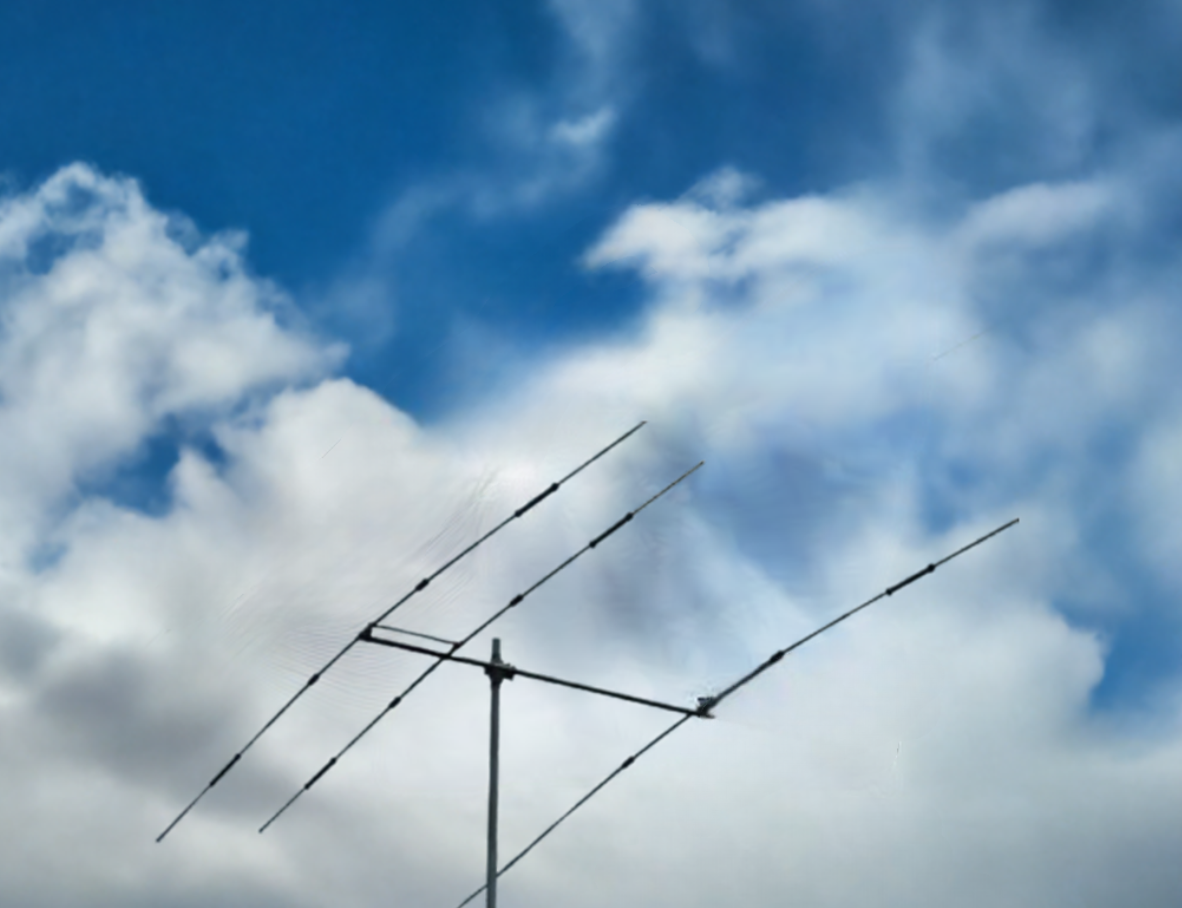

Mosley Mini-32AW HF 3 Element Mini Beam
Mosley Mini-32AW HF 3 Element Mini Beam
Mosley antenna
Mosley Mini-32AW HF 3 Element Mini Beam
£699.00 (£582.50 exc. VAT)
Download a PDF document for Mosley Mini-32AW HF 3 Element Mini Beam
Fast UK
delivery
Worldwide
delivery
Add to wishlist
Product code:MINI-32-AW
Brand:Mosley antenna

This Mosley antenna not only covers the three most popular HF bands, but also adds the two WARC bands. A phasing line between the two driven elements allows the use of a single feeder. A great antenna for the small garden.

3 Elements (2 on 10m, 15m and 20m) 1 on 12m and 17m)

10m -12m -15m - 17m -20m

Power rating 1KW SSB 500W CW 250W AM, FM and Digital

Max Length 19.3ft

Turning Radius 10.3ft

Boom 6ft

Mounting 1.5" diameter

Gain 5.1 / 4.5 / 3eB (10m-15n-20m) 0dB (dipole) on 12m -17m

F/B ratio 17 / 17 / 17dB (10m - 15m - 20m)
