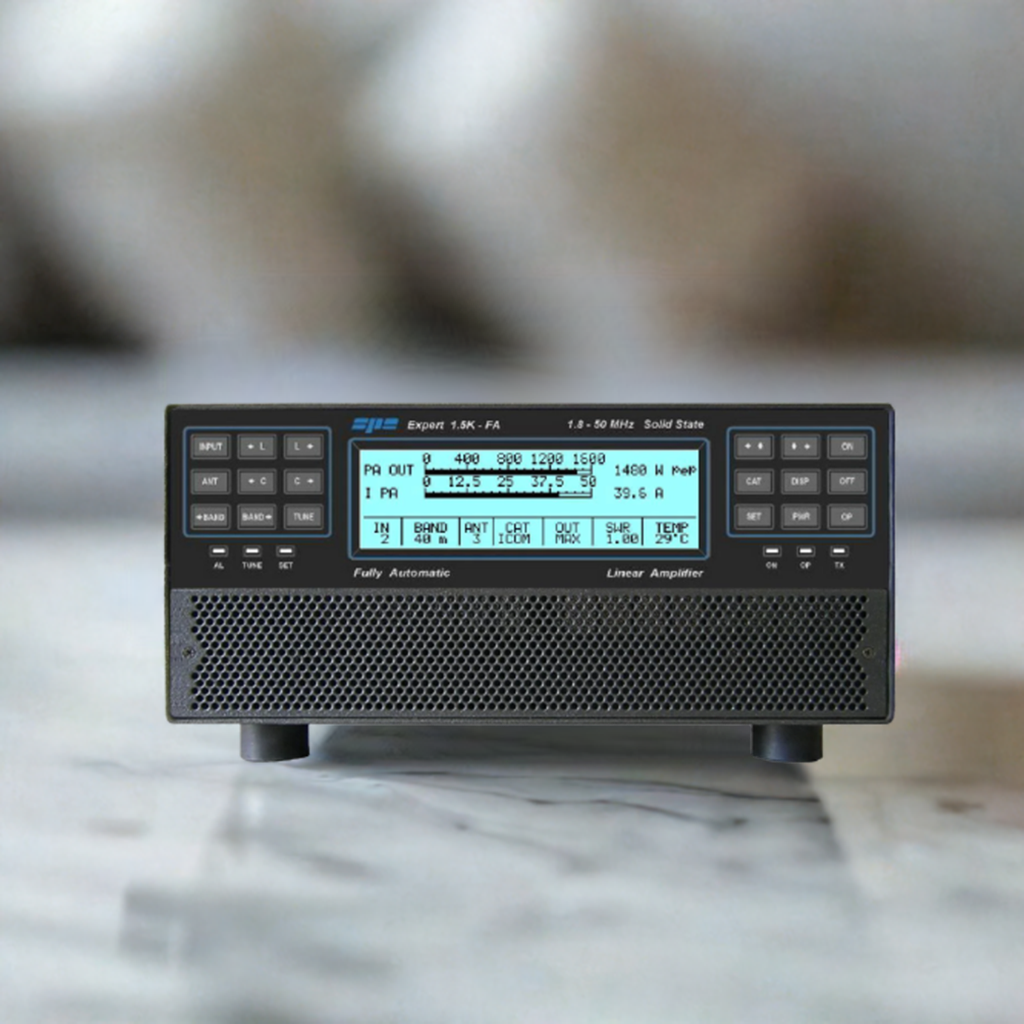

SPE Expert 1.5K-FA V3.0 Linear Amplifier
Click the image to enlarge

SPE Expert amplifiers

SPE Expert 1.5K-FA V3.0 Linear Amplifier - 1.5kW in on on all modes.

£0.00
(£0.00 exc. VAT)
£3,999.95
(£3,333.29 exc. VAT)
Fast uk delivery
Worldwide delivery
Out of Stock
Qty:
0 Reward points
Product code: 1.5K-FA
Download a pdf document for SPE Expert 1.5K-FA V3.0 Linear Amplifier - 1.5kW in on on all modes.

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£3,999.95
12 Months 14.9% APR
£399.99
£344.70
£4,536.34
£3,999.95
18 Months 14.9% APR
£399.99
£229.80
£4,536.34
£3,999.95
24 Months 14.9% APR
£399.99
£172.35
£4,536.34
£3,999.95
36 Months 14.9% APR
£399.99
£114.90
£4,536.34
£3,999.95
48 Months 14.9% APR
£399.99
£86.17
£4,536.34
£3,999.95
12 Months 19.5% APR
£399.99
£358.50
£4,701.94
£3,999.95
18 Months 19.5% APR
£399.99
£239.00
£4,701.94
£3,999.95
24 Months 19.5% APR
£399.99
£179.25
£4,701.94
£3,999.95
36 Months 19.5% APR
£399.99
£119.50
£4,701.94
£3,999.95
48 Months 19.5% APR
£399.99
£89.62
£4,701.94

Product Specifications, Version 3,  300W • -60dB,

Powerful: solid 1.5kW in on on all modes.

Updated V2.0 with better Harmonic suppression & other enhancements.

Very Light: about 10 kgs (about 22 lbs).

Very Small: H 12, W 28, D 36 cm. (4.72" X 11.2" X about 17", connectors included).

Wide Frequency Coverage: 1.8 mHz to 54 mHz*, including WARCs. (*Ham Bands Only)

All 1.5K's are high drive versions requiring 35W drive

Internal Switching Power Supply with Power Factor Correction.

No jumper changes necessary to work from 100VAC to 255VAC.

Manages 4 antennas automatically with up to 2 antennas per band.

Automatically switches between 2 transceivers.

S02R operation.

Predistortion -60dB output sample port.

Manages SPE AMB-01 Remote Antenna Matrix.

Able to manage external set of Band Pass Filters.

ATU Built-In: bypassable per antenna and band.

Up to 2 antennas can be selected for every band in the 1.5K if AMB-01 is added.

Additional receiving antenna can be selected.

Drives directly up to 4 dynamic antennas (StepplR, Ultrabeam) for an easiest layout.

No relay contacts are switched when current is flowing due to special software.

QSK.

Fully remotable.

Remote control and all software upgrades fully available on SPE website.

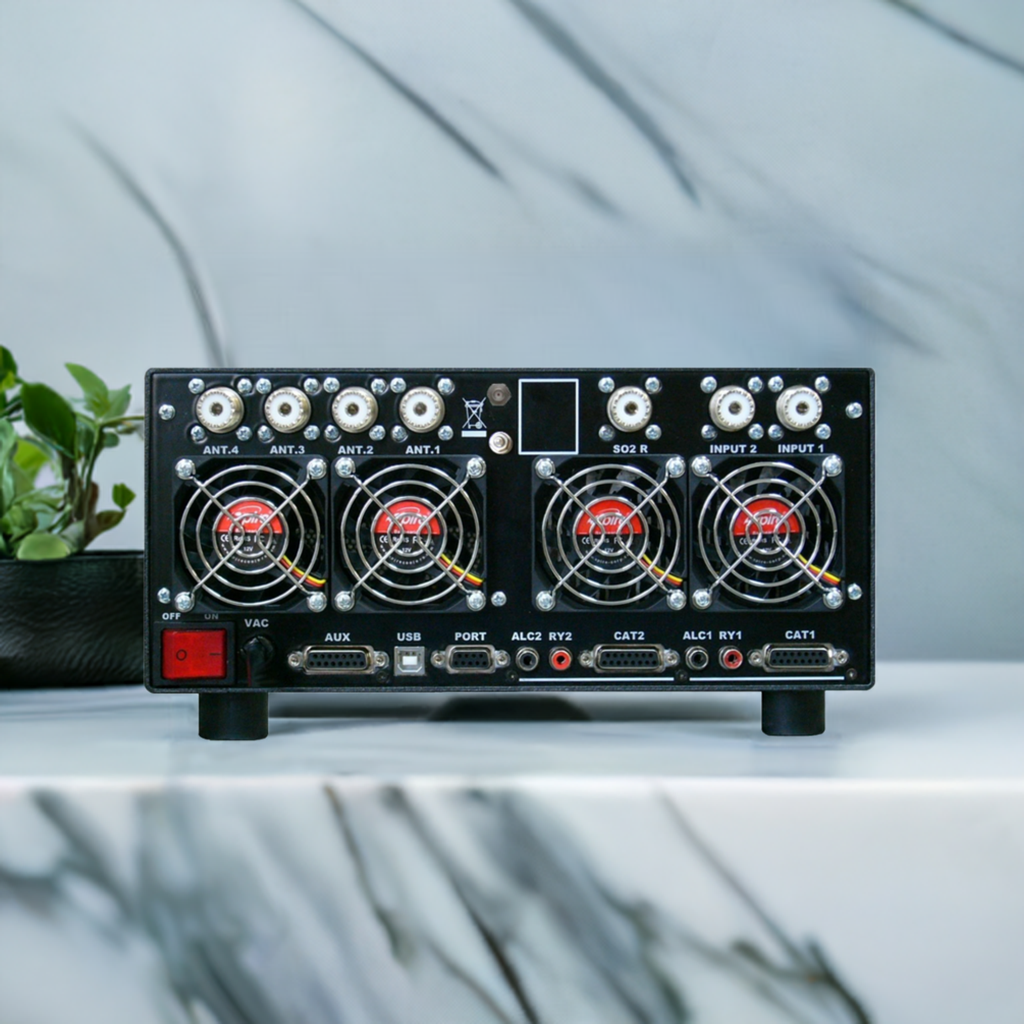

USB and RS 232 ports, with AMB-01 WiFi and Lan.

3 Selectable Power Outputs: MAX(1500 W), MID (1000 W), LOW (500 W).

Very clean and low distortion signal.

Both inputs always perfectly matched.

Quiet Operation: 4 fans linearly controlled by power supply and power amplifier temperatures.

Fully protected.

Fully Solid State: uses only one new, very rugged device.

Over 32,000 lines of software for performances that cannot be found in any other amplifier.

Two very fast CPUs.

CAT and Band Data compatible with all rigs on the market allowing control of antennas, bands, ATU matchings.

Complete with heavy duty carrying bag, allowing carry-on to airplanes.

Certifications: CE, FCC pending.
