RM HLA305V - PROFESSIONAL WIDEBAND HF 1.8-30MHZ (250W) AMPLIFIER (WITH LCD)
Click the image to enlarge

RM Amplifiers

RM HLA305V - PROFESSIONAL WIDEBAND HF 1.8-30MHZ (250W) AMPLIFIER (WITH LCD)

£0.00
(£0.00 exc. VAT)
£699.95
(£583.29 exc. VAT)
Fast uk delivery
Worldwide delivery
In Stock
Qty:
0 Reward points
Product code: 23-260
Download a pdf document for RM HLA305V - PROFESSIONAL WIDEBAND HF 1.8-30MHZ (250W) AMPLIFIER (WITH LCD)

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£699.95
12 Months 14.9% APR
£69.99
£60.32
£793.81
£699.95
18 Months 14.9% APR
£69.99
£40.21
£793.81
£699.95
24 Months 14.9% APR
£69.99
£30.16
£793.81
£699.95
36 Months 14.9% APR
£69.99
£20.11
£793.81
£699.95
48 Months 14.9% APR
£69.99
£15.08
£793.81
£699.95
12 Months 19.5% APR
£69.99
£62.73
£822.79
£699.95
18 Months 19.5% APR
£69.99
£41.82
£822.79
£699.95
24 Months 19.5% APR
£69.99
£31.37
£822.79
£699.95
36 Months 19.5% APR
£69.99
£20.91
£822.79
£699.95
48 Months 19.5% APR
£69.99
£15.68
£822.79

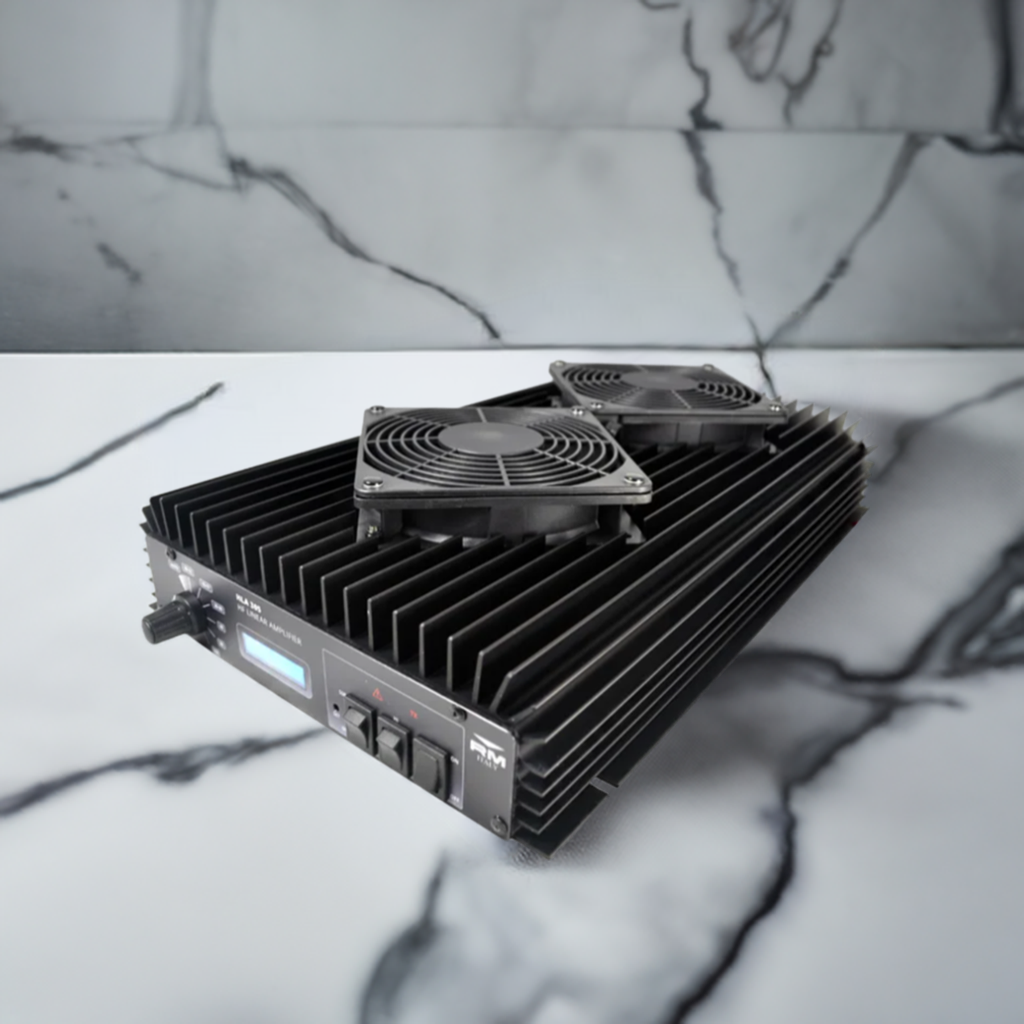

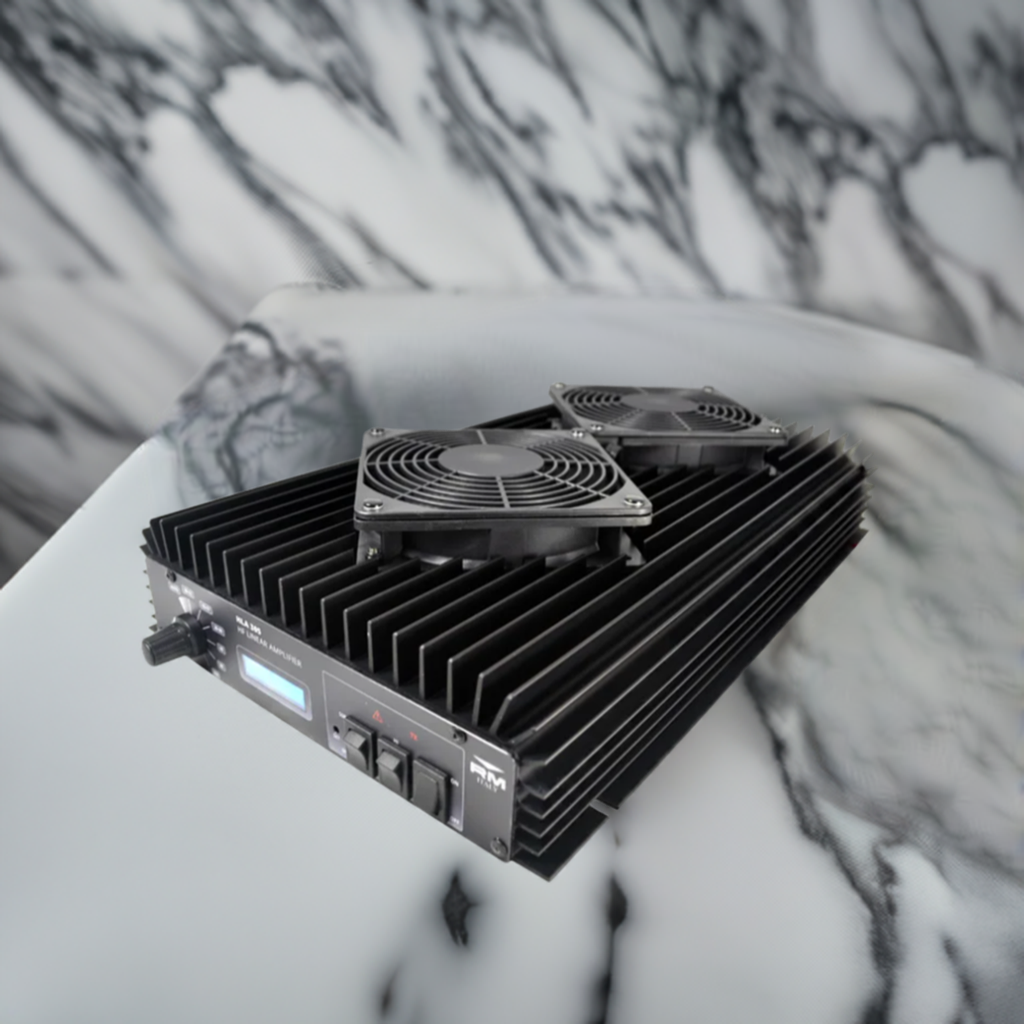

The HLA 305V is a wideband compact amplifier for the HF band covering 1.8-30 MHz Output is nominal 250W at full power, 6 band filter, and LCD for Amplifier Status. Input drive from 1W to 10W maximum. Ideal for low power handhelds and FT-817ND etc,

Key Features/Specifications: Output is nominal 250W at Full Power.

6 Band filter and LCD for Amplifier Status.

Input drive from 1W to maximum of 10W.

Forced multispeed ventilation.

Frequency: 1.8 MHz – 26 MHz and 28 MHz – 30 MHz

Mode: AM FM SSB CW RTTY.

RF Drive: 1-10 W (15W max). AM/CW

Output Power: P1db 50-240W AM/FM/CW ± 1db type. max

250W max. AM/FM/CW/Average Power

400W PEP SSB

Gain: 13,5 ± 1db P1db.

Power Voltage: 13 Vcc ± 2V.

Input Power: 45 A Max.

Input Impedance: 50 Ohm (unbalanced).

Output Impedance: 50 Ohm (unbalanced).

Final Transister: MRF 455 x 4.

Circuit: Class AB push-pull.

Dimensions: 240 x70x 450 mm. Weight: 4 Kg.

PLEASE NOTE: Do not EXCEED Input Power - The manufacturers RM Italy do not repair any amplifiers that have been over driven by mistake under warranty and charges are very expensive - If you are unsure please call or email for further details,

Output is nominal 250W at Full Power.

6 Band filter and LCD for Amplifier Status.

Input drive from 1W to maximum of 10W.

Forced multispeed ventilation.

Frequency: 1.8 MHz – 26 MHz and 28 MHz – 30 MHz

Mode: AM FM SSB CW RTTY.

RF Drive: 1-10 W typ. (15W max). AM/CW

Output Power: P1db 50-240W AM/FM/CW ± 1db typ. max

250W max. AM/FM/CW/Average Power

400W PEP SSB

Gain: 13,5 ± 1db P1db.

Power Voltage: 13 Vcc ± 2V.

Input Power: 45 A Max.

Input Impedance: 50 Ohm (unbalanced).

Output Impedance: 50 Ohm (unbalanced).

Final Transister: MRF 455 x 4.

Circuit: Class AB push-pull.

Dimensions: 240 x70x 450 mm. Weight: 4 Kg.
