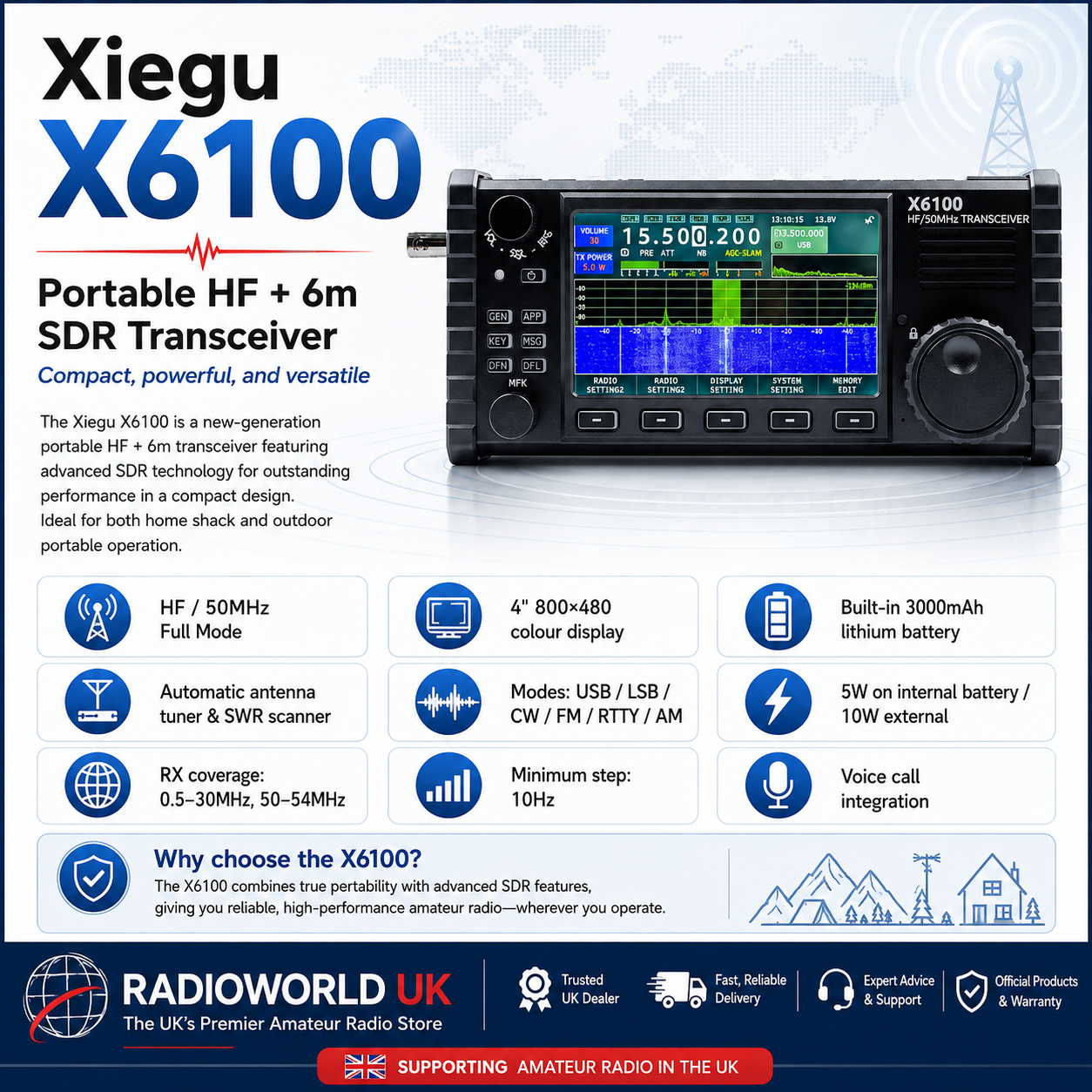

The Xiegu X6100 is a new portable HF plus 6m transceiver - ours are uploaded with the latest Firmware.

It is an SDR software radio with a host of features. Its compact structure and small size make it ideal for outdoor and portable use.

Features: SDR Structure, HF/50MHz Full Mode (supporting data communication)

Transmitting Power: External power supply: 10W | Battery power supply: 5W, 4" High-resolution Colour Screen, 800*480,

Built-in 3000mAh Lithium Battery, Built-in Automatic Antenna Tuner, Integrated SWR Scanner and Voice Call

Integrated Modem, Pre-set message, CW Automatic Call, Built-in Bluetooth/Wi-Fi function, enable wireless audio/keyboard/mouse operation, Integrated USB control/transmission, supports USB HOST, Built-in high-stability TCXO internal clock source.

Technical Specifications: Frequency Range (Receiving): 0.5MHz~30MHz, 50MHz~54MHz,

Frequency Range (Transmitting): 1.8～2.0MHz | 3.5～4.0MHz | 5.3515~5.3665MHz | 7.0～7.3MHz | 10.1～10.15MHz | 14.0～14.35MHz | 18.068～18.168MHz | 21.0～21.45MHz | 24.89～24.99MHz | 28.0～29.7MHz | 50.00～53.99MHz

Operation Mode: USB/LSB (J3E), CW (A1A), FM (F3E), RTTY(F1B), AM (A3E)

Minimum Frequency Step: 10Hz

External Power Supply Voltage: DC 9.0V~15.0V, negative ground

Frequency Stability: ±1ppm (20 minutes after start)

Antenna Port Impedance: 50Ω

Antenna Interface Type: BNC

Operating Temperature: 0℃～+55℃

Transmission power: External power supply: 10W | Battery power supply: 5W

Current consumption: Standby: 330mA (Max) | Transmit: 3A (Max)

Approx. Dimensions: 180mm x 86mm x 49mm

Transmitter Specifications: Output Power, internal battery: 5W,

Output Power, external power supply: 10W,

Stray suppression ≥ 60dB,

Sideband suppression: ≥50dB,

SSB Frequency Response: 300-2700Hz (-6dB)

FM Modulation Swing; +/- 5kHz,

Mic Impedance: o,2-10k (600 Ohm typical)

Antenna tuner tuning impedance range: 12.5-200 Ohm

Antenna tuner initial tuning time: ≥ 10s,

Antenna tuner memory recall time ≥ 0.1s,

Receiver Specifications: Circuit Type: ZIF,

Sideband Suppression: ≥50dB

MDS: -138dB

0.5～1.79999MHz: 10uV (AM)

1.8～1.99999MHz: 0.35uV (SSB/CW) | 10uV (AM)

2.0～27.9999MHz: 0.20uV (SSB/CW) | 2uV (AM)

28.0～30.0MHz: 0.20uV (SSB/CW) | 0.22uV (FM) | 2uV (AM)

50.0 ~ 54.0MHz: 0.20uV (SSB/CW) | 0.22uV (FM) | 2uV (AM)

Antenna Specifications: Antenna Tuner,

VSWR: 1:5.0

Antenna tuner initial tuning time: ≤15s

Antenna tuner tuning read time: ≤0.2s.
