MyDEL MP-304MKII 30 Amp Linear Power Supply
MyDEL MP-304MKII 30 Amp Linear Power Supply
MYDEL Radio Products
MyDEL MP-304MKII 30 Amp Linear Power Supply
RRP: £129.95
£99.95 (£83.29 exc. VAT)
Download a PDF document for MyDEL MP-304MKII 30 Amp Linear Power Supply
Fast UK
delivery
Worldwide
delivery
Add to wishlist
Product code:MP-304mkII
Brand:MYDEL Radio Products

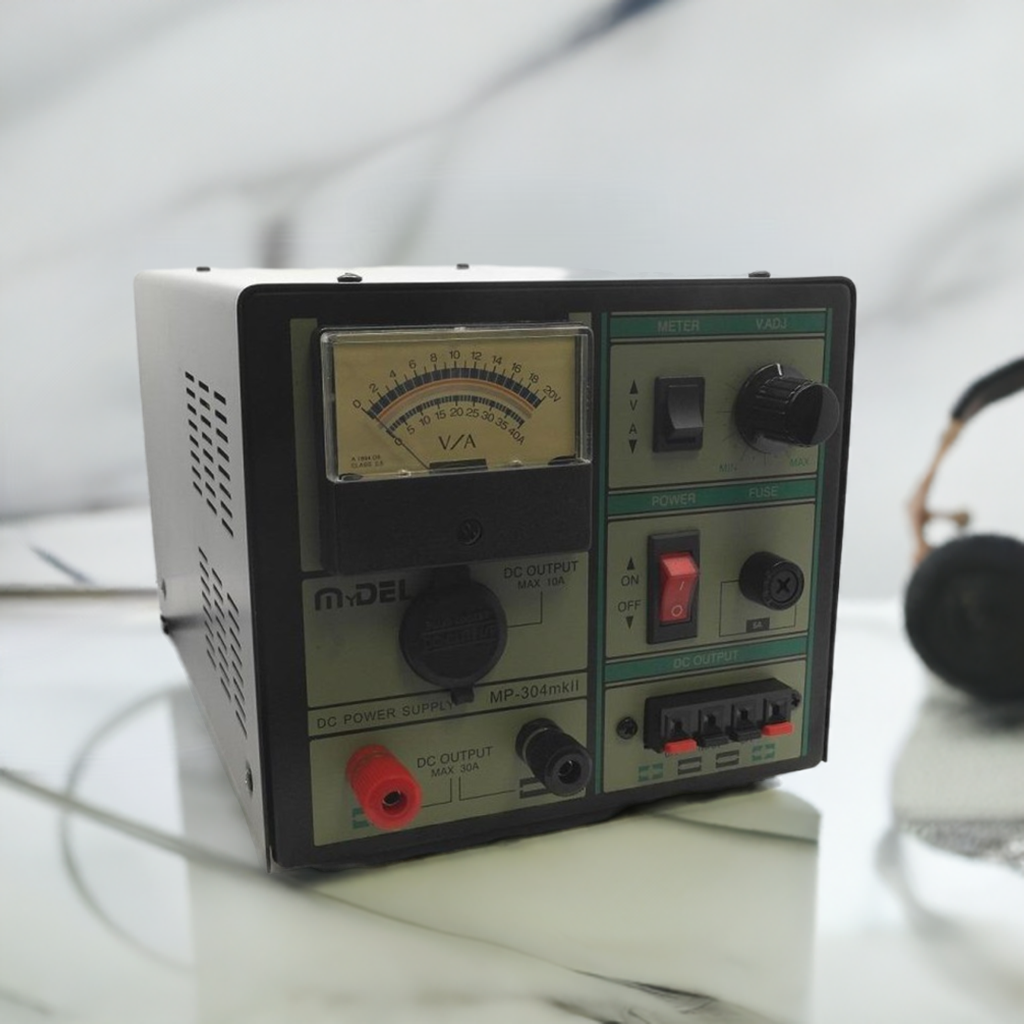

The MyDEL MP-304mkII PSU New addition to the MyDEL range of PSU’s. Heavy Duty LINEAR 30 Amp (max) For those of you that prefer old style non-switching technology in your power supply we think this new 30 Ampere from MyDEL is the one. Switchable Volts/Amps with large precise metering (analogue of course!) variable Voltage, Cigar socket output for all your accessories, twin front panel outlets for up to 6 Amps and two large binding post terminals for up to 30Amps. Remember, all MyDEL PSU’s come with a two year.

Specification:

1. Input Voltage: 230V 50Hz +/-2Hz

2. Output Voltage: DC 1.5V - 15V continuous

3. Current Output (at 13.8V d.c.): 30A (max), 20A (15 minutes), 15A (continuous) (NB lower max current at lower voltage, e.g. 17A at 10V d.c.)

4. Load Regulation <= 1%

5. Ripple: <= 10mV

6. Protection: Current Limitation, Short Circuit

7. Environmental:

a. Temperature 0 deg C - 40 deg C

b. Humidity

c. Atmospherci Pressure: 86Kpa - 104Kpa

8. Dimensions: 300mm x 175mm x 160mm ( L x W x H)

9. Weight: 9Kg
