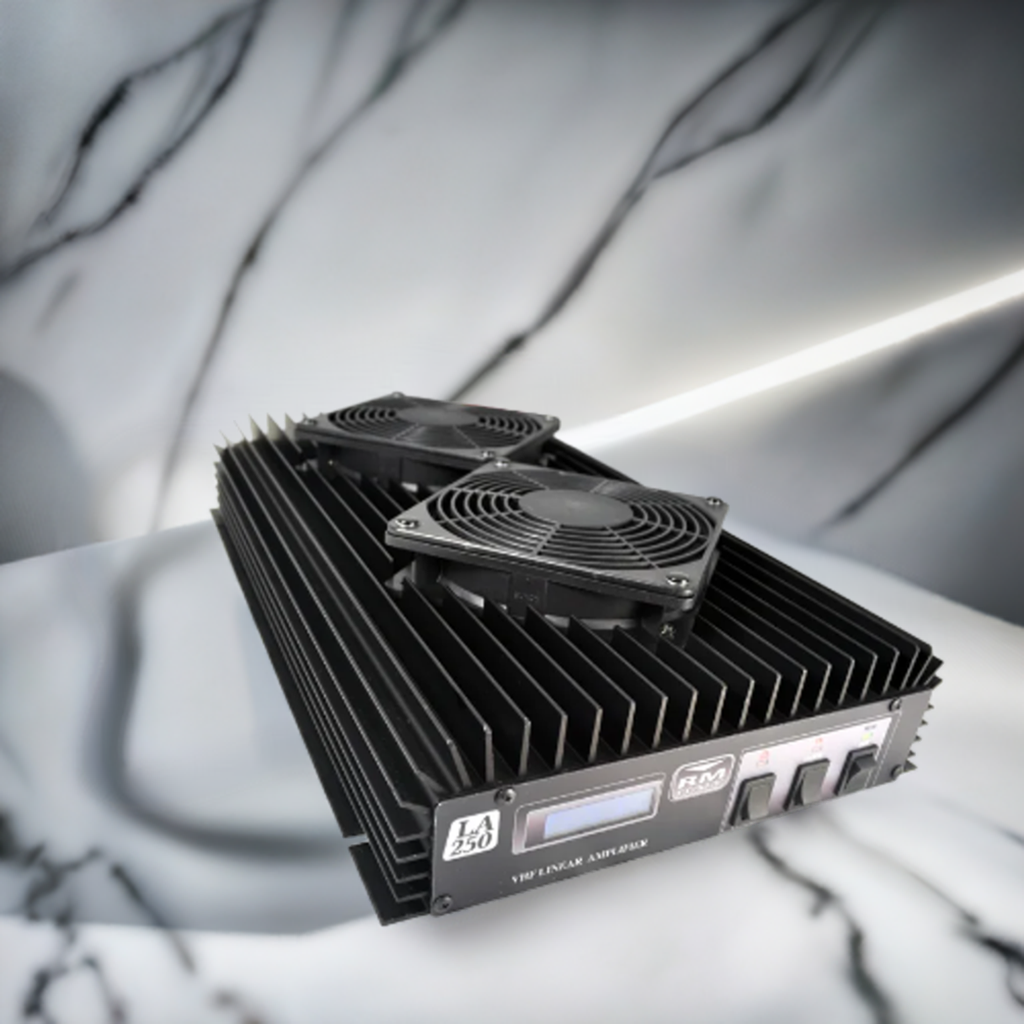

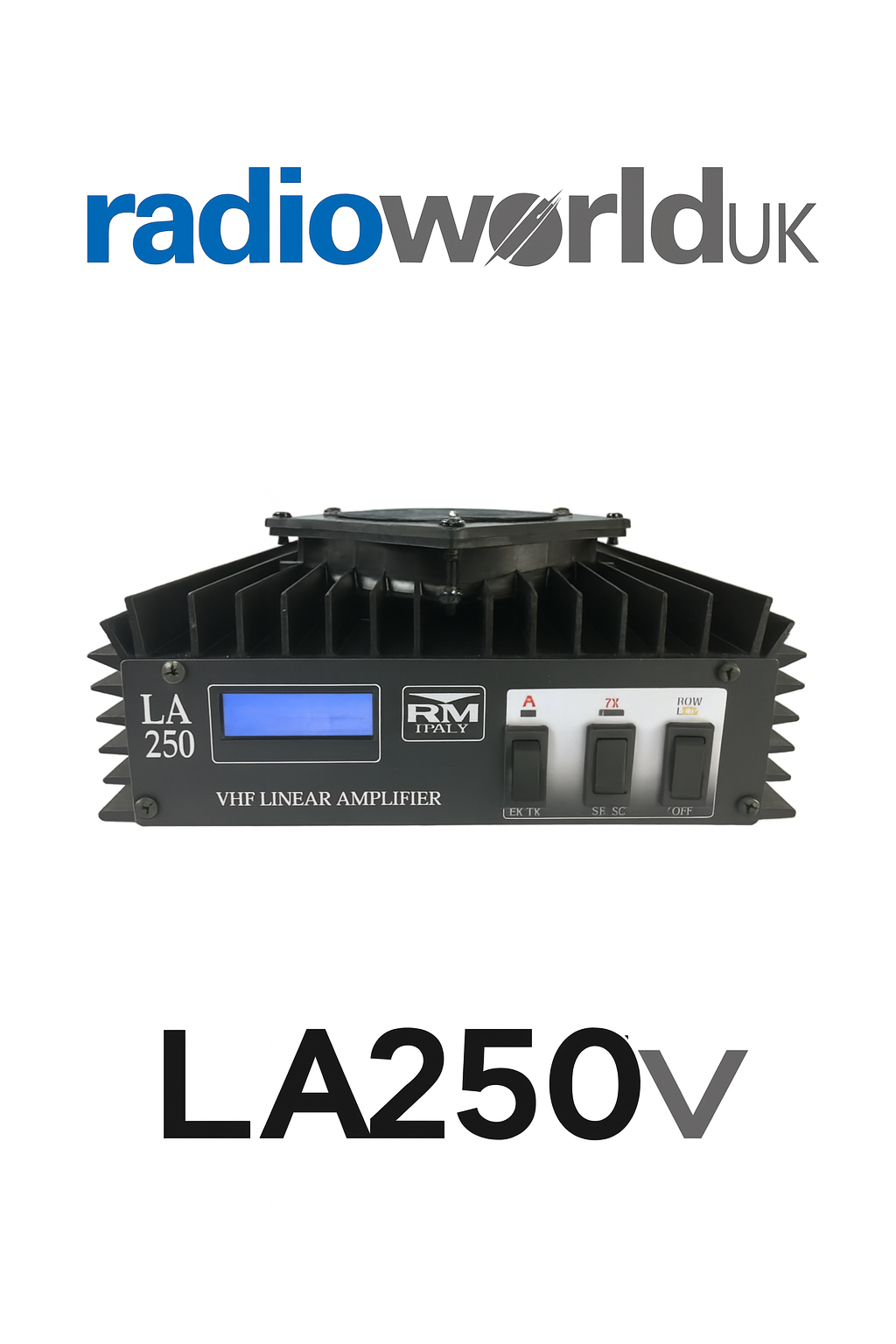

RM LA250V -140-150MHZ (200W) LINEAR AMPLIFIER (WITH FANS)
Click the image to enlarge

RM Amplifiers

RM LA250V -140-150MHZ (200W) LINEAR AMPLIFIER (WITH FANS)

£0.00
(£0.00 exc. VAT)
£649.99
(£541.66 exc. VAT)
Fast uk delivery
Worldwide delivery
In Stock
Qty:
0 Reward points
Product code: LA250V
Download a pdf document for RM LA250V -140-150MHZ (200W) LINEAR AMPLIFIER (WITH FANS)

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£649.99
12 Months 14.9% APR
£65.00
£56.01
£737.16
£649.99
18 Months 14.9% APR
£65.00
£37.34
£737.16
£649.99
24 Months 14.9% APR
£65.00
£28.01
£737.16
£649.99
36 Months 14.9% APR
£65.00
£18.67
£737.16
£649.99
48 Months 14.9% APR
£65.00
£14.00
£737.16
£649.99
12 Months 19.5% APR
£65.00
£58.26
£764.07
£649.99
18 Months 19.5% APR
£65.00
£38.84
£764.07
£649.99
24 Months 19.5% APR
£65.00
£29.13
£764.07
£649.99
36 Months 19.5% APR
£65.00
£19.42
£764.07
£649.99
48 Months 19.5% APR
£65.00
£14.56
£764.07

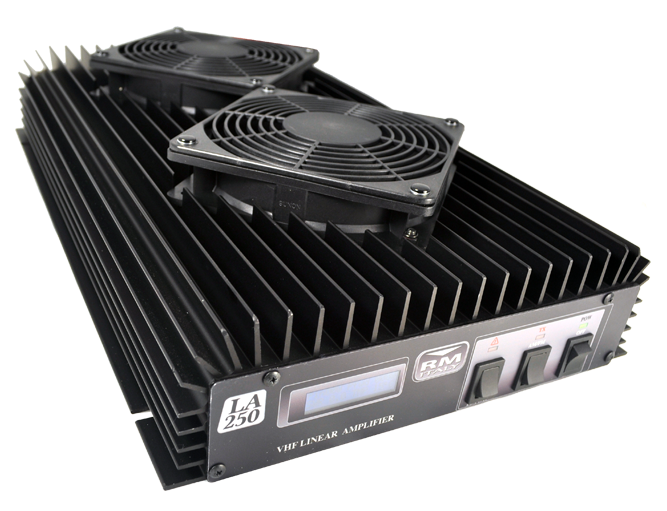

The LA-250 is a 200W 140-150MHz amplifier, at 1 to 20W input (13.6V 30A). It uses 4 Mitsubishi RD70 Mosfets mounted on a copper heat spreader

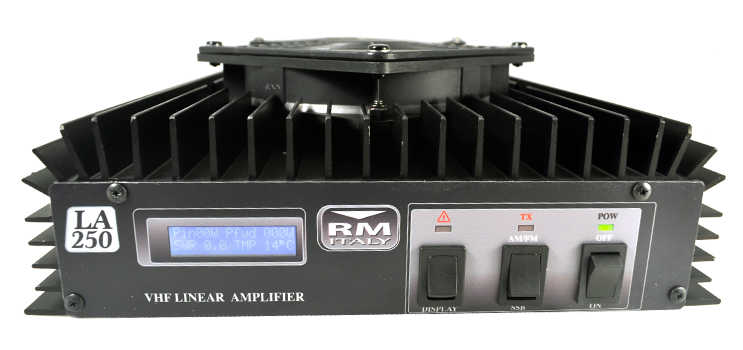

There is an external PTT input but it can be used also without due to the built-in HF-VOX. The front panel features an LCD display which shows input power, output power, heat sink temp and output VSWR. There is the ability to change the intensity of the backlight.

The CPU keeps an eye on input power, temperature and VSWR and will if necessary disable the amplifier from transmitting if there is fault. Any errors will also be recorded and will be available for later recall for diagnostic purposes by either the manufacturer or his distributors.

Key Features/Specifications:

VHF 140—150 MHz Linear Amplifier

Operation Frequency: 140—150 MHz (2m Amateur VHF Band)

Modulation Types: SSB,CW,AM, FM, data etc (All narrowband modes)

Transistor: 4x Mitsubishi RD70HVF1

Power Supply: 13VDC+/- 1V 40A

Input Fuse (Internal): 3x10A (5x20mm Fast)

Input RF Power: 1-15W ; 20W max (All modes)

Output RF Power (Nominal): 30 – 210W ; 200W max AM/FM/CW

Maximum bypass power (Amplifier off): 50W

Input VSWR: 1.1—1.5:1 Output VSWR Maximum: 2.8:1

Protection: Reverse Polarity, High Temperature, Load VSWR and Excessive I/P power
