Barker & Williamson, highest quality HF broadband antennas

BWD‑20 Broadband Folded Dipole Antenna | 1.8–30 MHz HF & 30–54 MHz VHF Coverage

£0.00
(£0.00 exc. VAT)
£429.00
(£357.50 exc. VAT)
Fast uk delivery
Worldwide delivery
Out of Stock
Qty:
ADD TO WISHLIST
429 Reward points
Product code: BWD-20
Download a pdf document for BWD‑20 Broadband Folded Dipole Antenna | 1.8–30 MHz HF & 30–54 MHz VHF Coverage

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£429.00
12 Months 14.9% APR
£42.90
£36.97
£486.53
£429.00
18 Months 14.9% APR
£42.90
£24.65
£486.53
£429.00
24 Months 14.9% APR
£42.90
£18.48
£486.53
£429.00
36 Months 14.9% APR
£42.90
£12.32
£486.53
£429.00
48 Months 14.9% APR
£42.90
£9.24
£486.53
£429.00
12 Months 19.5% APR
£42.90
£38.45
£504.29
£429.00
18 Months 19.5% APR
£42.90
£25.63
£504.29
£429.00
24 Months 19.5% APR
£42.90
£19.22
£504.29
£429.00
36 Months 19.5% APR
£42.90
£12.82
£504.29
£429.00
48 Months 19.5% APR
£42.90
£9.61
£504.29

Click here to recommend this product to a friend

Recommend a friend

BWD‑20 broadband folded dipole antenna for 1.8–30 MHz HF operation – Radioworld UK

BWD‑20 Broadband Folded Dipole Antenna | 1.8–30 MHz HF & 30–54 MHz VHF Coverage


Trustpilot

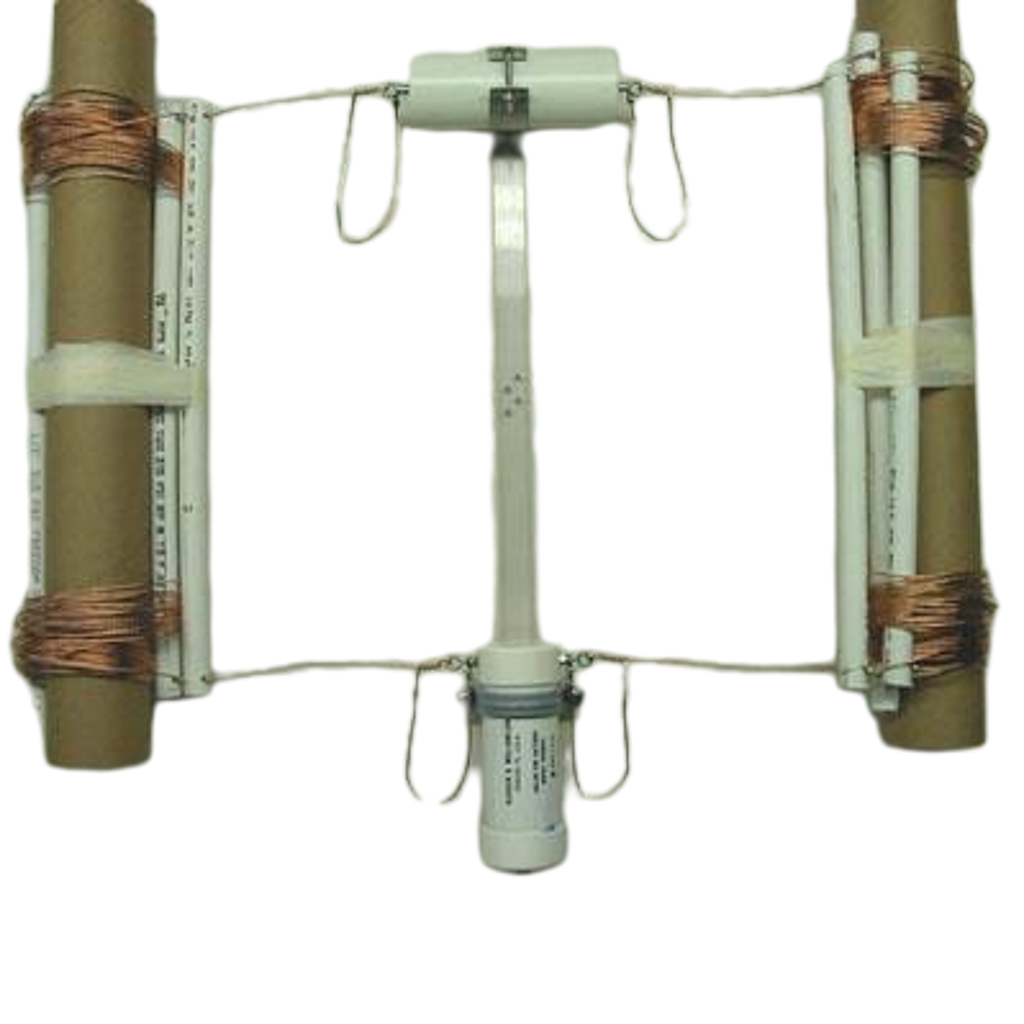

The BWD‑20 is a compact 20‑foot broadband folded dipole antenna offering continuous coverage from 1.8 to 30 MHz with an SWR of less than 2:1 across the entire HF range when fed with 50‑ohm coax. No tuner is required for most HF radios, making it ideal for rapid‑deployment, contesting, emergency communications and multi‑band operation.

Its terminated folded design provides exceptional EMI rejection, resulting in a quieter receive performance compared to conventional wire antennas. With no relays, motors or moving parts, the BWD‑20 delivers long‑term reliability and maintenance‑free operation.

Constructed from stranded copper‑clad steel and stainless‑steel wire, the antenna is rugged enough to withstand extreme weather conditions. Installation options include inverted‑V, flat‑top or sloper configurations. NVIS operation is achieved when installed as a flat‑top at 6–12 ft, providing approximately 250‑mile omnidirectional coverage with no skip.

SpecificationDetails
ModelBWD‑20
Length20 ft
SWR < 2:11.8 – 30 MHz (continuous)
SWR < 3:130 – 54 MHz
Usable Bands20 m to 6 m
Antenna TypeBroadband folded dipole
ConstructionStranded copper‑clad steel & stainless‑steel wire
EMI RejectionHigh, due to terminated folded design
Tuner RequiredNo (HF bands)
Installation OptionsInverted‑V, flat‑top, sloper
Minimum Height25 ft for 80 m, 40 ft for 160 m
NVIS OperationFlat‑top at 6–12 ft, approx. 250‑mile coverage
ApplicationsHF operation, emergency comms, contesting, attic installations
DurabilityRated to withstand hurricane‑level conditions
BrandAlpha Delta
SupplierRadioworld UK
