Diamond WD330J HF Wire Antenna – Radioworld UK

Diamond WD330J HF Antenna – 2–30MHz, 25m T2FD Design, 150W PEP, PL Connector


Trustpilot

The Diamond WD330J is a high-performance HF wire antenna designed for radio amateurs, shortwave listeners, and commercial services. Featuring a T2FD (Tilted Terminated Folded Dipole) design, it offers exceptional bandwidth coverage from 2 to 30MHz, making it ideal for universal HF applications.

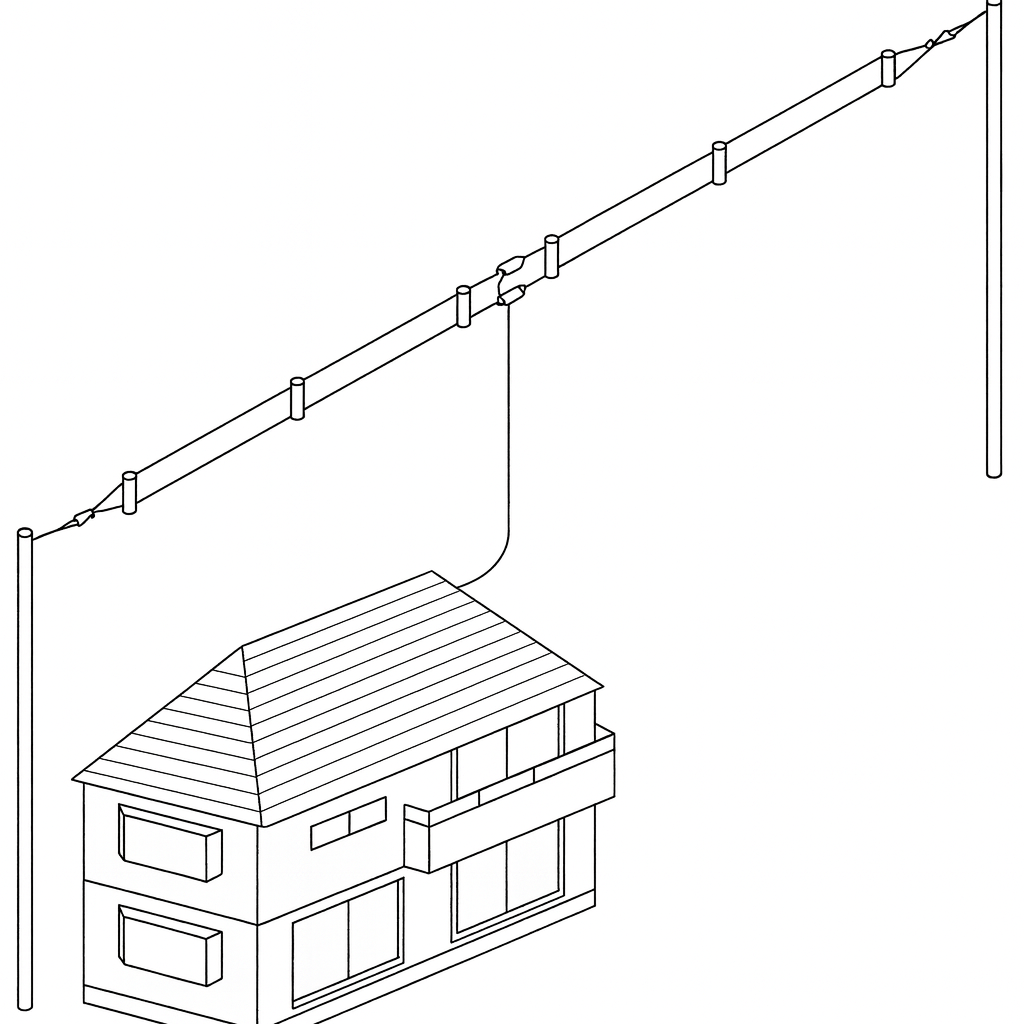

When installed straight, the WD330J exhibits a directional pattern similar to a dipole. When configured as an inverted Vee, it delivers a nearly omnidirectional radiation pattern, offering installation flexibility based on user needs.

Key specifications:

  • Frequency Range: 2–30MHz

  • Design: T2FD (Tilted Terminated Folded Dipole)

  • Length: 25m

  • Weight: 3.1kg

  • Power Handling: 150W PEP

  • Impedance: 50 ohms

  • Connector Type: PL

  • Includes: Balun, insulators

  • Excludes: Cable

  • Installation Options: Straight or inverted Vee

Engineered for durability and performance, the WD330J is a reliable solution for wideband HF communication.
