Continuous coverage from 3.5MHz to 14.5MHz, Midsize antenna, ideal for 80m up to 20m with continuous covering, manufactured on a stable aluminum reed with a diameter of 75mm (ca. 3 inches). Loop diameter is 2m (ca. 78 inches), can be mounted without radials, like all loop-antennas. Over the years manufacturers and indeed homebrewers have been trying to make reliable Magnetic Loops because of their extremely compact size, frequency range, and immunity to noise. Finally, an Italian manufacturer Ciro Mazzoni has perfected the design and is able to offer two versions covering the entire 80m-10m range built to ultra-professional standards. Ciro Mazzoni loops are made of pure aluminum and even the Baby-Loop uses a 50mm ( 2 inches) diameter of the tubing. Because of the large surface area, there is less loss of gain and both ends are welded onto the socket, with zero screw connections so no contact resistance.
The tuning capacitor on both loops is not a simple variable capacitor but a huge variable plate capacitor fabricated out of aluminum, with an air-dielectric. Both plates are also welded directly to the loop and are virtually indestructible on high power. The distance between the plates is 14mm (ca. 1/2 inch) on the smallest Baby-Loop antenna.
A weather-resistant actuator opens or closes the loop and thus tunes the plate capacitor (SWR tuning).
Capacitance can be varied by the motor and can be adjusted to achieve the best SWR via a control unit in your shack. In spite of their compact size, the antennas are resonant in a wide frequency range - do you know of any antenna which has a diameter of just one meter (ca. 38 inches) but a frequency range of 40m-10m without gaps?? Check out the new Baby & Midi-Loops from Ciro-Mazzoni.

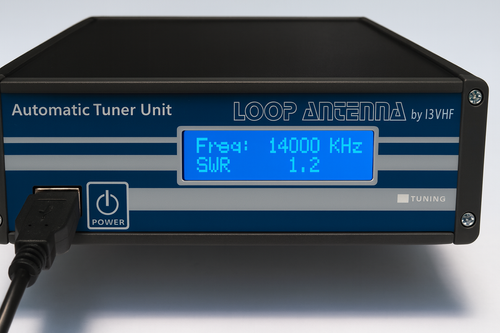

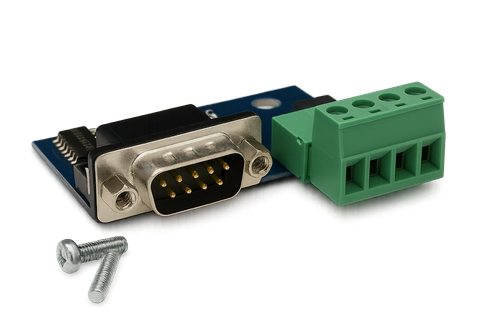

The automatic control unit has a tuning circuit installed and is operated via a small keypad: just enter the desired frequency, wait a few seconds for automatic tuning of the antenna and go. No trying, no lost notes on settings, no checking with the SWR meter. The current frequency and SWR are shown on the LCD display. The maximum power load is 250W continuous with the automatic control unit.
Mechanical Spec: Loop Diameter: 2m
Tube Diameter: 75mm,
Wind Exposure: 0.5mq,
Mast Diameter: From 48mm to 60mm,
Electrical Spec: 6db,
Front Gain: 25db,
Side Gain: 1.2:1,
VSWR: 300w from 3.5MHz to 7.0MHz,
Max Power: 800w from 8.0MHz to 14MHz,
Impedance: 50 Ohm with Gamma Match,
Bandwidth: 4KHz @ 3.5MHZ,
10K @ 14MHz,
Efficiency (1/2 Wave): -4db @ 3.5MHz,
-0.3db @ 14Mhz.
