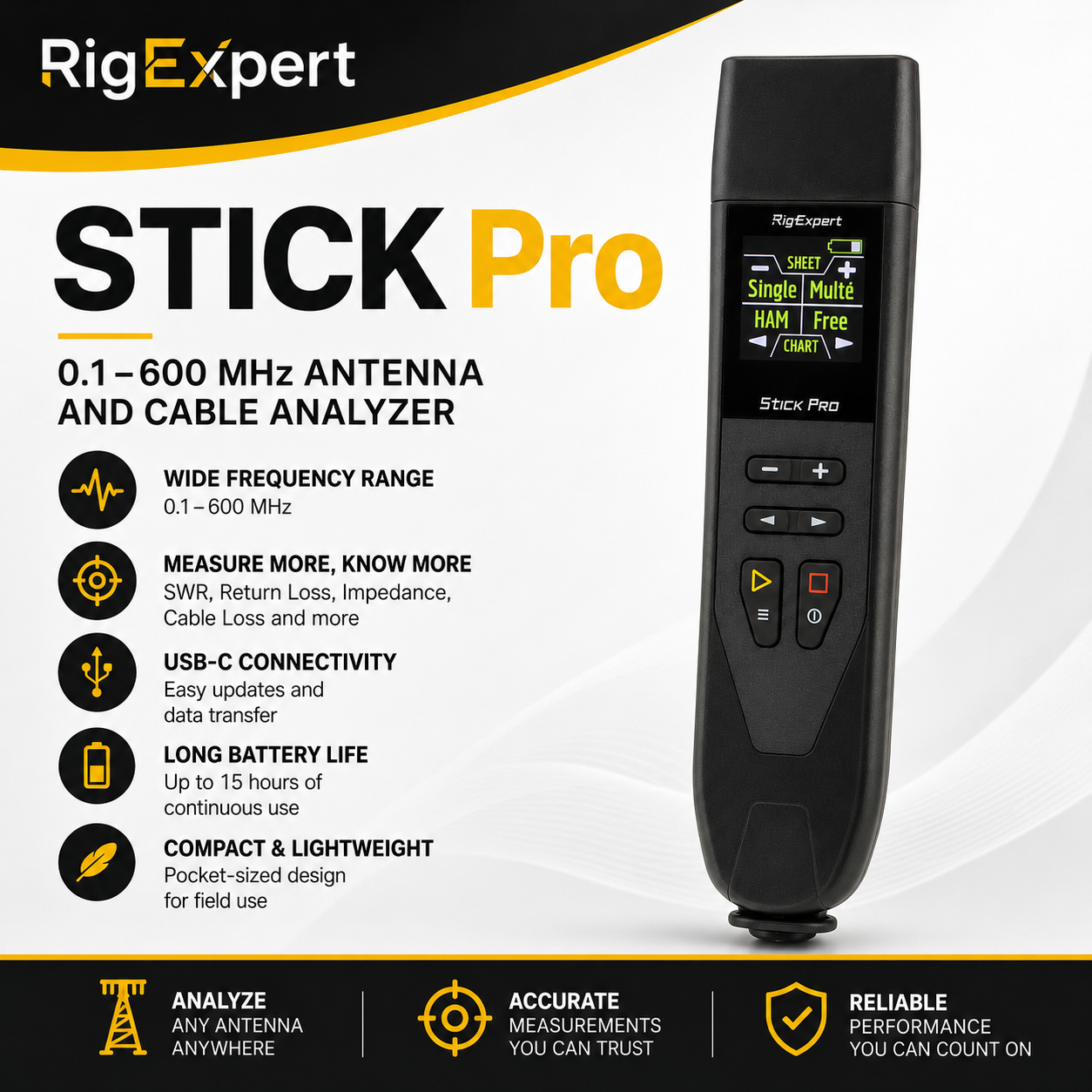

RigExpert Stick Pro - Frequency range: 0.1 ~ 600 MHz
RigExpert Stick Pro - Frequency range: 0.1 ~ 600 MHz
- Home
- RigExpert Stick Pro - Frequency range: 0.1 ~ 600 MHz
RIG-EXPERT loop and Antenna Analyzer and TNC
RigExpert Stick Pro - Frequency range: 0.1 ~ 600 MHz
Finance Available
Radioworld now offer finance through our partners Close Brothers.
Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.
Item Cost | Finance Option | Deposit | Monthly Payments | Total Cost |
---|---|---|---|---|
£394.38
|
12 Months 14.9% APR
|
£39.44
|
£33.99
|
£447.27
|
£394.38
|
18 Months 14.9% APR
|
£39.44
|
£22.66
|
£447.27
|
£394.38
|
24 Months 14.9% APR
|
£39.44
|
£16.99
|
£447.27
|
£394.38
|
36 Months 14.9% APR
|
£39.44
|
£11.33
|
£447.27
|
£394.38
|
48 Months 14.9% APR
|
£39.44
|
£8.50
|
£447.27
|
£394.38
|
12 Months 19.5% APR
|
£39.44
|
£35.35
|
£463.59
|
£394.38
|
18 Months 19.5% APR
|
£39.44
|
£23.56
|
£463.59
|
£394.38
|
24 Months 19.5% APR
|
£39.44
|
£17.67
|
£463.59
|
£394.38
|
36 Months 19.5% APR
|
£39.44
|
£11.78
|
£463.59
|
£394.38
|
48 Months 19.5% APR
|
£39.44
|
£8.84
|
£463.59
|
Frequency range: 0.1 ~ 600 MHz,  Frequency input step: 1 kHz, Measurements for 25, 50, 75, 100, 150, 200, 300, 450 and 600Ω systems, SWR measurement range: from 1 to 100 in digital mode, from 1 to 10 in graph modes, Range R and X: 0… 2000, -2000… 2000,
Operating modes: SWR, Return loss, R, X, Z, L, C, magnitude and phase angle at one frequency. SWR chart, 100 points. Multé mode – for quick testing of a multi-band antenna.
HF output: Connector type: N-type. Output signal shape: square, from 0.1 to 600 MHz. Output power: -10 dBm (at a load of 50 Ohms).
Power: One lithium-ion battery 3.7 V type 18650. When the analyzer is connected to a PC or DC adapter with a USB connector, it receives power from these sources,
Interface: 200 × 200 TFT display. 2 × 3 keys on the waterproof keyboard. English menu and help screens. USB connection to a personal computer,
Bluetooth: v.4.2 BLE Single Mode, Class B,
Dimensions: 185 mm x 40 mm x 33 mm (7.3 inches x 1.6 inches x 1.3 inches),
Operating temperature: 0 … 40 ° C (32 … 104 ° F),
Weight: 185 g (6.5 ounces) with battery,
Warranty: 2 years,
GTIN-13: 4820185420280,
RigExpert Stick Pro is made in Ukraine.
* All specifications are subject to change without notice or obligation.
Information, General, User’s Manual, Inside The Box.
