New
GAP VOYAGER 4 BAND VERTICAL, 20/40/80/160M
GAP VOYAGER 4 BAND VERTICAL, 20/40/80/160M
GAP VOYAGER 4 BAND VERTICAL, 20/40/80/160M s1
GAP VOYAGER 4 BAND VERTICAL, 20/40/80/160M s2
Click the image to enlarge
GAP VOYAGER 4 BAND VERTICAL, 20/40/80/160M
GAP VOYAGER 4 BAND VERTICAL, 20/40/80/160M s1
GAP VOYAGER 4 BAND VERTICAL, 20/40/80/160M s2

GAP vertical antenna

GAP Voyager 4 Band Vertical, 20/40/80/160m

£0.00
(£0.00 exc. VAT)
£695.00
(£579.17 exc. VAT)
Fast uk delivery
Worldwide delivery
Out of Stock
Qty:
ADD TO WISHLIST
0 Reward points
Product code: 11332
Download a pdf document for GAP Voyager 4 Band Vertical, 20/40/80/160m

Want to be notified when this product is back in stock? Complete the form below and we'll send you an email when it is.

Finance Available

Radioworld now offer finance through our partners Close Brothers.

Add the item to your basket in the normal way and at checkout choose to make payment via Finance. You’ll then be taken through to our partners Pay4Later to make your finance application.

Item CostFinance OptionDepositMonthly PaymentsTotal Cost
£695.00
12 Months 14.9% APR
£69.50
£59.89
£788.20
£695.00
18 Months 14.9% APR
£69.50
£39.93
£788.20
£695.00
24 Months 14.9% APR
£69.50
£29.95
£788.20
£695.00
36 Months 14.9% APR
£69.50
£19.96
£788.20
£695.00
48 Months 14.9% APR
£69.50
£14.97
£788.20
£695.00
12 Months 19.5% APR
£69.50
£62.29
£816.98
£695.00
18 Months 19.5% APR
£69.50
£41.53
£816.98
£695.00
24 Months 19.5% APR
£69.50
£31.14
£816.98
£695.00
36 Months 19.5% APR
£69.50
£20.76
£816.98
£695.00
48 Months 19.5% APR
£69.50
£15.57
£816.98

This is the first antenna manufactured specifically to provide efficient low band operation. Emphasis was given to 160m and 80m when designing the VOYAGER.

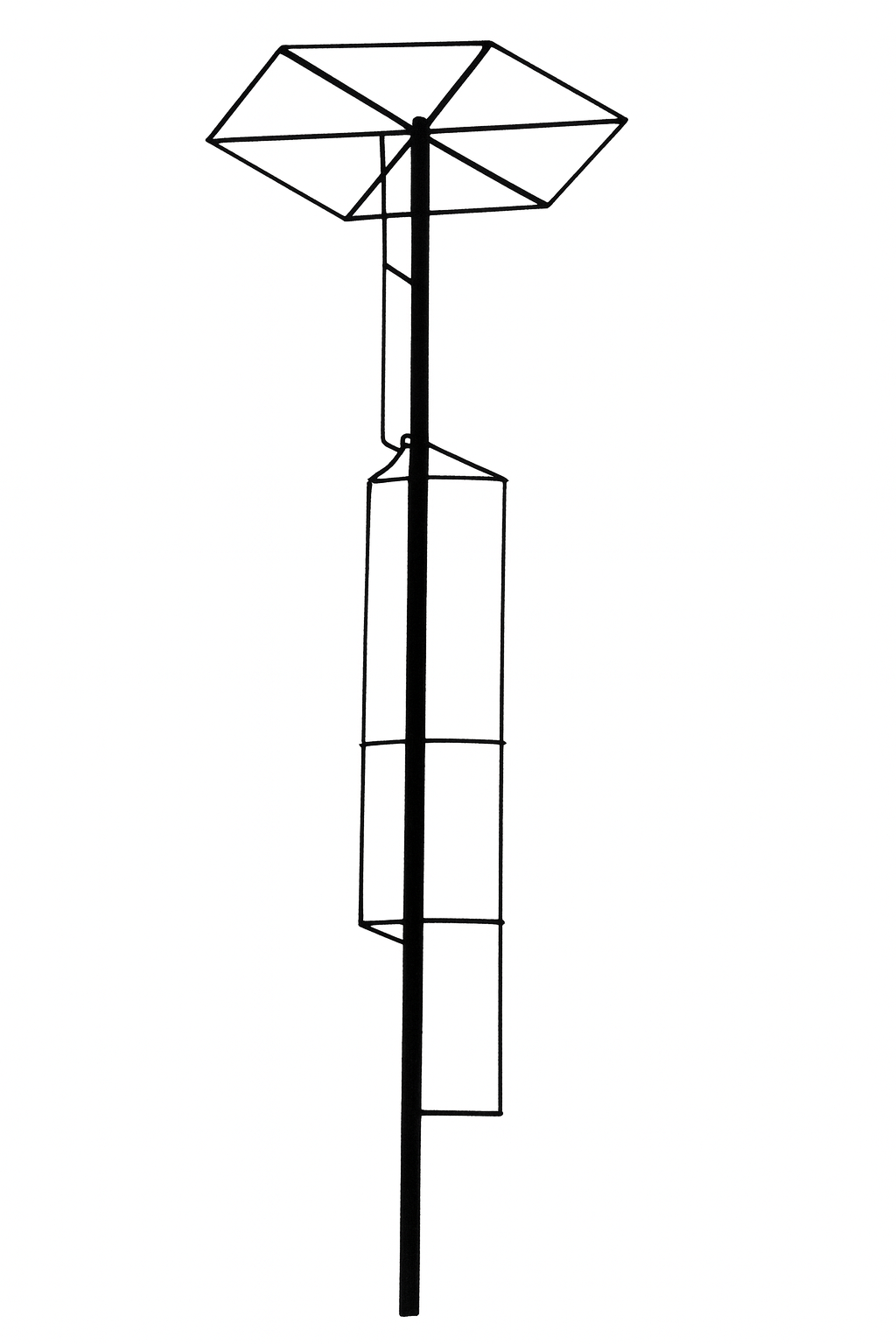

Unlike the Challenger, the VOYAGER employs a capacity hat with a circular ring to reduce the physical height to 13.5m while maintaining an electrical height of 20 m. A capacity hat is the most efficient way to reduce height, maintain bandwidth, and eliminate corona.

The entire band on 80m (!!), 40m, and 20m, 90 kHz bandwidth on 160m.

As is the case with the CHALLENGER three insulated counterpoises of 17m are required, the deployment pattern is very flexible - also possible around corners.

Four guy anchor points 7.5m from the base mount are required. The guy brackets and aluminum pivot are supplied but not the guy rope itself.

Height [m]    1350 cm

Supported Bands    20m, 40m, 80m, 160m.
